Positional Heatmap Display

Overview

The standard display mode for a bigBed track is a simple block or exon/intron marker in the window. Extra fields in the bigBed, however, can contain a variety of additional data. When data in the extra fields meet the schema described below, then the simple block display can be replaced with a positional heatmap. The heatmap provides a sparse 2-dimensional grid for information like expression of allele-specific point mutations across a transcript.

Heatmap track showing a color-coded grid of expression values across genomic positions

Contents

The Extra Fields
Getting Started
Displaying Your Heatmap
Troubleshooting

The Extra Fields

A heatmap bigBed file starts with the standard 12 BED fields, but adds 7 more. In a heatmap, the standard BED blockCount, blockSizes, and chromStarts fields define the columns of the grid (one column per block), while the extra field _rowCount defines the number of rows. The remaining extra fields provide row labels, a color gradient, per-cell scores, per-cell mouseover labels, and a legend.

    string chrom;      "Chromosome (or contig, scaffold, etc.)"
    uint   chromStart; "Start position in chromosome"
    uint   chromEnd;   "End position in chromosome"
    string name;       "Name of item"
    uint   score;      "Score from 0-1000"
    char[1] strand;    "+ or -"
    uint thickStart;   "Start of where display should be thick (start codon)"
    uint thickEnd;     "End of where display should be thick (stop codon)"
    uint reserved;     "Used as itemRgb as of 2004-11-22"
    int blockCount;    "Number of blocks"
    int[blockCount] blockSizes; "Comma separated list of block sizes"
    int[blockCount] chromStarts; "Start positions relative to chromStart"
    int _rowCount;    "Number of heatmap rows"
    string[_rowCount] _labels; "Comma separated list of row labels"
    lstring _colorBounds; "Comma-separated list of threshold scores for colors"
    lstring _colorValues; "Comma-separated list of colors, one for each threshold score"
    lstring _scoreArray; "Comma-separated row-first list of scores, ,, indicates N/A"
    lstring _labelArray; "Comma-separated row-first list of mouseover labels, ,, indicates N/A"
    lstring legend; "Legend"

The _rowCount field describes how many rows exist in each item's heatmap, while the blockCount field describes the number of columns. The _labels field provides the labels for each row of the heatmap; no column labels are currently supported, as they are already tied to positions.

The _colorBounds and _colorValues fields together control the color gradient used to display scores. They define score thresholds and their associated colors; scores between thresholds are drawn in an interpolated color, and scores beyond the outer thresholds are clamped to the nearest boundary color. See the Getting Started section below for detailed examples of how to configure these fields.

The _scoreArray and _labelArray fields contain the actual scores and mouseover text for each cell within the heatmap in row-major order, meaning the list of scores will fill the first row, then overflow to begin filling the second row, then the third row and so on. Because these are comma-separated lists, a cell can be left empty simply by placing nothing between the commas that demarcate it.

For example, if blockCount is 2 and _rowCount is 3, then the line will describe a 6-cell heatmap with 3 rows and 2 columns. If the accompanying _scoreArray is "1,0,2,,0.5,,", then that describes the following grid:

Column 1Column 2
Row 110
Row 22(empty)
Row 30.5(empty)

This format is a bit awkward to describe with only 6 cells; it becomes difficult or impossible to edit manually when the heatmaps reach sufficient size (like hundreds or even thousands). We strongly recommend the use of automated scripts to create these files.

The final field is legend, which is much simpler. The text in this field is used to create a legend for the heatmap that will be displayed at the top after the "name" from the BED file.

Getting started with heatmaps

To build a heatmap bigBed, you will need:

The basic BED fields:
It is difficult to manage sizeable heatmap examples without resorting to scripting and automation. Small examples are the easiest ones to experiment with. For the sake of this example, imagine that we already have a list of two transcripts, T1 and T2, that we want to make heatmaps for. T1 and T2 themselves are described in a BED file like so:

#chrom  chromStart  chromEnd  name  score  strand  thickStart  thickEnd  reserved  blockCount  blockSizes   chromStarts
chr1    1000        2000      T1    1000   +       1000        2000      0         2           200,200,     0,800
chr1    1200        2400      T2    1000   -       1200        2400      0         3           500,800,300  0,600,900

Separately, we have a list of four heatmap boxes that we want to draw for each of these transcripts. For T1, the heatmap boxes cover bases 100-200 of the transcript (1100-1200 in the genome) and 700-800 (1700-1800 in the genome), each with two boxes labeled Case 1 and Case 2. For T2, the labels are the same but the bases covered are 200-300 and 900-1000.

Creating heatmaps for the transcripts means changing the exon structure of each one - instead of representing exon boundaries, those fields will be used to describe the regions where we want to draw the heatmap boxes. The number of blocks determines the number of columns in the heatmap (and therefore the number of entries in _scoreArray and _labelArray). We'll also need to add extra fields with the remainder of the heatmap data, but let's start with the exons. We immediately have a problem - in a BED file, the exons are expected to span the length of the item. If our first line is intended to show a transcript on chr1 from base 1000 to 2000, then the first exon needs to start at 1000 and the last exon needs to end at 2000, even though we don't have heatmap data for those "exons". There are two ways to get around this.

Option 1 is to simply reduce the size of each transcript to match the extent of where we want to draw the heatmap. For that first line, if we only have heatmap data for bases 100-200 and 700-800 in the transcript (bases 1100-1200 and 1700-1800 in the genome), then those are the new bounds for our transcript (note that this means changing chromStart/End, thickStart/End, and the relative chromStarts values for the exons):

#chrom  chromStart  chromEnd  name  score  strand  thickStart  thickEnd  reserved  blockCount  blockSizes  chromStarts
chr1    1100        1800      T1    1000   +       1100        1800      0         2           100,100     0,600
chr1    1400        2200      T2    1000   -       1400        2200      0         2           100,100     0,700

Note that in addition to changing the blockCount, blockSizes, and chromStarts, we also needed to change thickStart and thickEnd to indicate where the first exon "starts" and the last one "ends".

Option 2 is to add a fake exon on each edge of the transcript to pad out the exon list (assuming that our heatmap data doesn't already reach the edges of the transcript - if it does, then this problem goes away). These fake exons can then be associated with no score value in the list of heatmap scores, which means no heatmap color will be drawn there, but the bounding box of the heatmap will still extend for the full length of the transcript (1000-2000).

#chrom  chromStart  chromEnd  name  score  strand  thickStart  thickEnd  reserved  blockCount  blockSizes   chromStarts
chr1    1000        2000      T1    1000   +       1000        2000      0         4           1,100,100,1  0,100,700,999
chr1    1200        2400      T2    1000   -       1200        2400      0         4           1,100,100,1  0,200,900,1199

Either approach might be suitable for your use case. Note that if you use Option 2, each phantom block still needs corresponding entries in the _scoreArray and _labelArray fields - just leave them empty between commas. For this example, we'll continue with Option 2.

The extra fields:
Now that we've filled in the basic BED fields, we need to populate the remaining seven heatmap-specific fields. As we said earlier, in this example we have two rows that we want to draw in each heatmap, which we've decided to label "Case 1" and "Case 2". This means that our _rowCount value will be 2, and the _labels value will be "Case 1","Case 2". Here's the updated BED, though we're not done yet:

#chrom  chromStart  chromEnd  name  score  strand  thickStart  thickEnd  reserved  blockCount  blockSizes   chromStarts     _rowCount  _labels
chr1    1000        2000      T1    1000   +       1000        2000      0         4           1,100,100,1  0,100,700,999   2          "Case 1","Case 2"
chr1    1200        2400      T2    1000   -       1200        2400      0         4           1,100,100,1  0,200,900,1199  2          "Case 1","Case 2"

The next two fields, _colorBounds and _colorValues, are tied together. A heatmap displays a gradient of color, which is intended to convey score information. Frequently only two color bounds are used, for the minimum and maximum values, and intermediate scores are transformed into a color shade between the two. If the maximum score is 5, associated with red (#), and the minimum score is -5, associated with blue (#), then a score of 0 would be purple - midway between the two (#). That would be a heatmap with two colorBounds and two colorValues - the bounds are -5 and 5, and the values are blue and red. If you reduced the colorBounds to -3 and 3, you'd keep the same color scheme, but some of your heatmap scores would now saturate at full red or blue because they went past the outer score boundary on either side.

In some situations, though, you might want to keep the association of red with positive scores and blue with negative ones without mixing the two. A score of 0 should instead be drawn in white, positive scores should range from faint red (for positive scores close to 0) to full red (for positive scores at or exceeding the max threshold). Negative scores, meanwhile, should be drawn in blue (faint blue close to 0, intense blue at the minimum threshold). This display would use three colorBounds and three colorValues - the bounds are -5, 0, and 5, and the values are blue, white, and red. Here is an example of what that would look like in our BED:

#chrom  chromStart  chromEnd  name  score  strand  thickStart  thickEnd  reserved  blockCount  blockSizes   chromStarts     _rowCount  _labels            _colorBounds  _colorValues
chr1    1000        2000      T1    1000   +       1000        2000      0         4           1,100,100,1  0,100,700,999   2          "Case 1","Case 2"  -5,0,5        #0000ff,#ffffff,#ff0000
chr1    1200        2400      T2    1000   -       1200        2400      0         4           1,100,100,1  0,200,900,1199  2          "Case 1","Case 2"  -5,0,5        #0000ff,#ffffff,#ff0000

Note that we're using hexadecimal RGB colors here, and that the thresholds must be listed in ascending order by score.

Finally, we need to add the scores themselves, the mouseover labels for each cell, and a legend for the figure. The scores are whatever your data scores are - we're using some random values here. If you don't have data for a particular cell, for example if Case 1 doesn't have a score for the second exon, just leave that value empty in the comma-separated list of scores. Also remember that in this example, we included phantom exons to pad out the BED window to the length of the full transcript, so we don't have scores for those end-caps either. The scores list for each heatmap is just a long comma-separated list of the entire set of scores for the heatmap, which means we're compressing the scores for Case 1 and Case 2 together. We do this by listing all of the scores for Case 1 first (the first row), followed by the scores for Case 2. If we had a third row, we'd add those scores to the list after the ones for Case 2. So here, if Case 1 has a score of 2.8 for the first exon and no score for the second exon, and Case 2 has a score of -4 for the first exon and 8.9 for the second exon, it would look like this:

#chrom  chromStart  chromEnd  name  score  strand  thickStart  thickEnd  reserved  blockCount  blockSizes   chromStarts     _rowCount  _labels            _colorBounds  _colorValues             _scoreArray
chr1    1000        2000      T1    1000   +       1000        2000      0         4           1,100,100,1  0,100,700,999   2          "Case 1","Case 2"  -5,0,5        #0000ff,#ffffff,#ff0000  ,2.8,,,,-4,8.9,,
chr1    1200        2400      T2    1000   -       1200        2400      0         4           1,100,100,1  0,200,900,1199  2          "Case 1","Case 2"  -5,0,5        #0000ff,#ffffff,#ff0000  ,0.1,-2,,,1.1,-3.5,,

Note the trailing comma at the end of the scores list. If the last cell in the array is empty, a trailing comma is required to distinguish it from the end of the list (e.g., ,1.5,, rather than ,1.5,). If the last cell has data, the trailing comma is optional.

All that is left now is to fill in a similarly-structured comma-separated list for cell-specific mouseover labels and a legend. The mouseover labels can be used to do things like indicate the numerical score value (because viewers will otherwise only see the heatmap color) or provide other useful contextual information like "no data" or the HGVS term describing a mutation at that position.

#chrom  chromStart  chromEnd  name  score  strand  thickStart  thickEnd  reserved  blockCount  blockSizes   chromStarts     _rowCount  _labels            _colorBounds  _colorValues             _scoreArray           _labelArray                                                 legend
chr1    1000        2000      T1    1000   +       1000        2000      0         4           1,100,100,1  0,100,700,999   2          "Case 1","Case 2"  -5,0,5        #0000ff,#ffffff,#ff0000  ,2.8,,,,-4,8.9,,      ,"2.8, medium","no data",,,"-4, low","8.9, extreme",,,      "Example on transcript 1"
chr1    1200        2400      T2    1000   -       1200        2400      0         4           1,100,100,1  0,200,900,1199  2          "Case 1","Case 2"  -5,0,5        #0000ff,#ffffff,#ff0000  ,0.1,-2,,,1.1,-3.5,,  ,"0.1, negligible","-2, low",,,"1.1 marginal","-3.5 low",,  "Example on transcript 2"

Here is this example in a BED file (using tabs as field separators), and the corresponding bigBed file. The bigBed was created from the BED file using the following command:

bedToBigBed -tab -type=bed12+ -as=heatmap.as heatmap.bed chrom.sizes heatmap.bb

A copy of heatmap.as is available here. chrom.sizes files for most assemblies can be found on our download server.

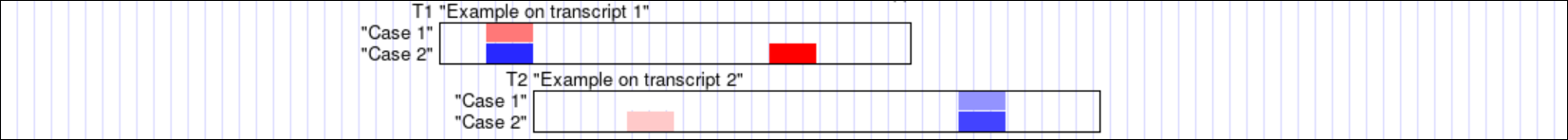

Heatmap track with customized color scale displaying allele-specific data

Displaying your heatmap

Once you have created a bigBed file, you need to tell the Genome Browser to display it as a heatmap rather than a standard bigBed track. This is done by adding the style heatmap setting to your track's trackDb configuration. Without this setting, the browser will render the file as an ordinary bigBed track and the heatmap extra fields will be ignored.

The most common way to load a heatmap track is through a track hub. A minimal trackDb entry for a heatmap track looks like this:

track myHeatmap
shortLabel My Heatmap
longLabel My heatmap track
type bigBed 12 +
bigDataUrl myHeatmap.bb
style heatmap
visibility pack

For details on setting up a track hub, including the required hub.txt and genomes.txt files, see the track hub basics documentation.

Troubleshooting

The most likely place to encounter errors when building a heatmap file is when running the bedToBigBed program. The score and label arrays can be difficult to organize, and we highly recommend making use of a bit of scripting to automate the process. Common issues include:

The errors reported by bedToBigBed are usually helpful for identifying which part of the input isn't organized correctly, but please contact us if you continue to have issues.
